The meter is a handheld 3 1/2 digital clamp meter for measuring DC and DV voltage, AC current, Resistance, Diode and Continuity Test with battery operated.

Features:

Display: 4000 counts
Jaw Opening: Φ42mm/1.7″
Auto Ranging
Auto Power Off
Relative Measurement
Diode: 2.7V
Continuity Buzzer: <30Ω
Data Hold
Low Battery Display

Overview:

Power Supply: 1*9V 6F22 Battery

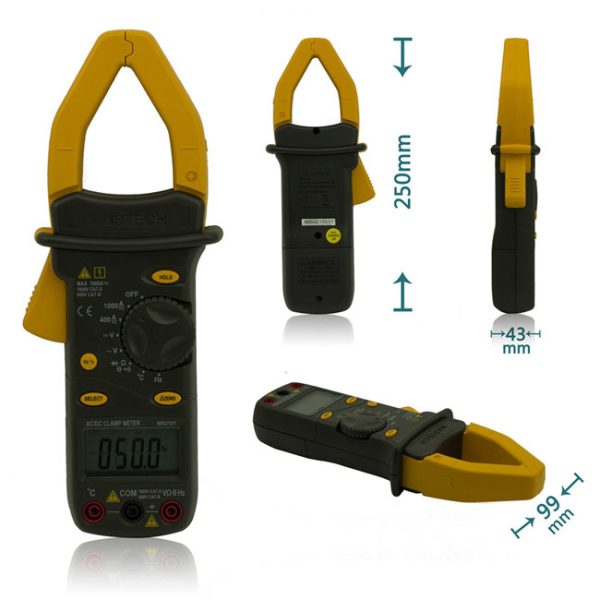

Product Size: 250mm*99mm*43mm / 9.8″*3.9″1.7″
Product Weight: 416g/0.92lb
Safety Rating: CAT II 1000V / CAT III 600V RoHS

Specification	Range	Accuracy
DC Voltage	400mV/4V/40V/400V	+-(0.7%+1)
DC Voltage	1000V	+-(0.8%+3)
AC Voltage	4V/40V/400V	+-(0.8%+5)
AC Voltage	700V	+-(1.0%+10)
DC Current	400A/1000A	+-(3.0%+3)
AC Current	400A/1000A	+-(3.0%+3)
Resistance	400Ω/4kΩ/40kΩ/400kΩ/4MΩ	+-(1.2%+1)
Resistance	40MΩ	+-(2.0%+3)
Capacitance	4nF/40nF/400nF/4µF/40µF	+-(4.0%+10)
Frequency	40Hz/400Hz/4kHz/40kHz/100kHz	+-(2.0%+1)
Duty Cycle	0.1%~99.9%	+-(2.0%+1)
Temperature	-40℃~0℃	+-(1.0%+6)
	1℃~400℃	+-(1.0%+3)
	401℃~750℃	+-(1.0%+5)
